Nine processes. One shop. Zero handoffs.
From first CAD line to final finish, everything happens on our 25,000 sq ft floor in Delta, BC — so tolerances don't drift between vendors.
Process capability
CNC Machining
Haas VF-series machines for high-quality, repeatable CNC milling on production runs of any size.
Manual Machining
Rotary milling with 4-axis control for parts that need a machinist's hands as much as a program.
Waterjet Cutting
Precision tooling down to the decimal, cutting virtually any material without heat-affected zones.
Custom Fabrication
A complete fabrication shop capable of welding, forming, and building custom assemblies to print.
Finishing & Heat Treatment
The latest finishing and smoothing techniques to protect parts and meet spec on appearance and durability.
Inspection & Testing
Strict quality assurance on every batch, verified with high-quality metrology equipment.
Laser Engraving
Permanent, precise marking on nearly any material — part numbers, logos, or traceability codes.
Precision Machining
Precision cutting to ±0.0001" at a maximum taper of ±30°, for features conventional cutting can't reach.
Rapid Prototyping
Multi-material, high-accuracy prototyping to validate a design before it hits the CNC floor.

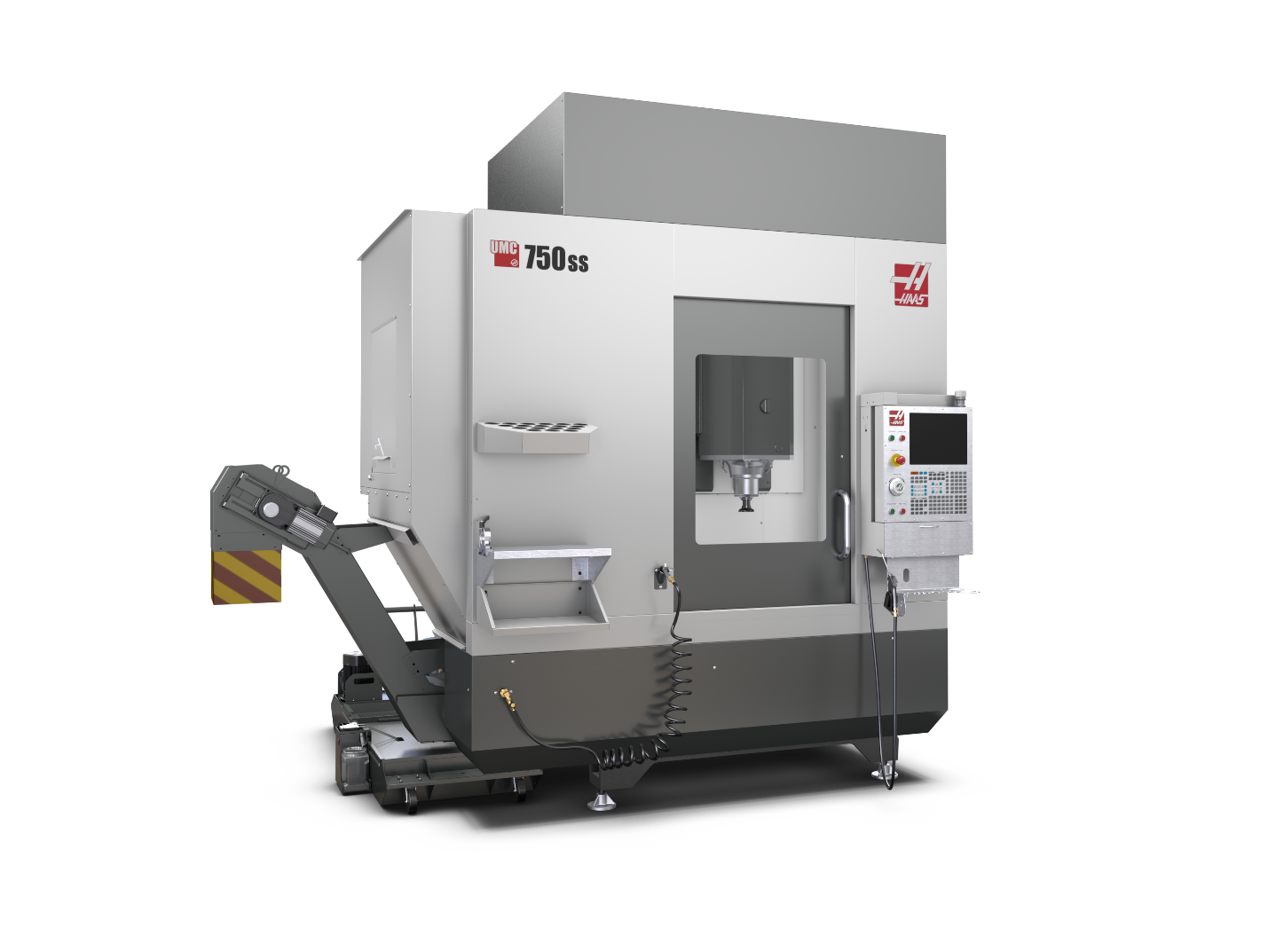

5-Axis Machining Center
Simultaneous 5-axis trunnion machining for complex, multi-face geometry in a single setup — fewer fixtures, tighter stack-up tolerances.
- Travels (X/Y/Z)30" / 20" / 20"
- Trunnion table24.8" × 19.7"
- B-axis travel+110° / -35°
- C-axis travel360° continuous
- Spindle speed15,000 rpm
- Spindle power30 hp / 22.4 kW

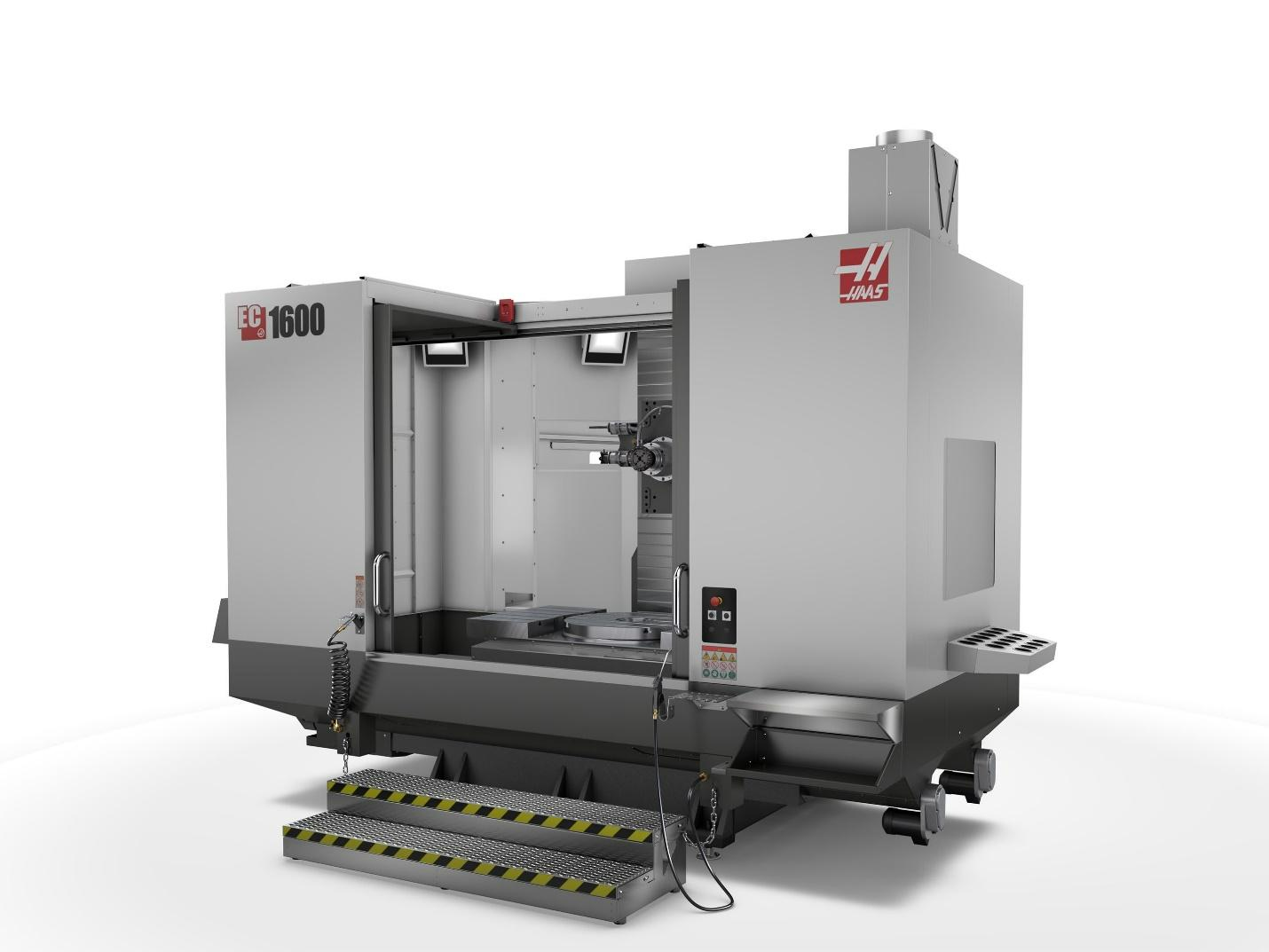

Horizontal Machining Center
High-volume horizontal machining for multi-face parts and large weldments, with pallet-style loading to keep spindle time up between setups.
- Travels (X/Y/Z)64" / 50" / 32"
- Table size64" × 36"
- Max weight on table10,000 lb
- Spindle speed6,000 rpm
- Spindle power30 hp / 22.4 kW
- Max rapids540 ipm

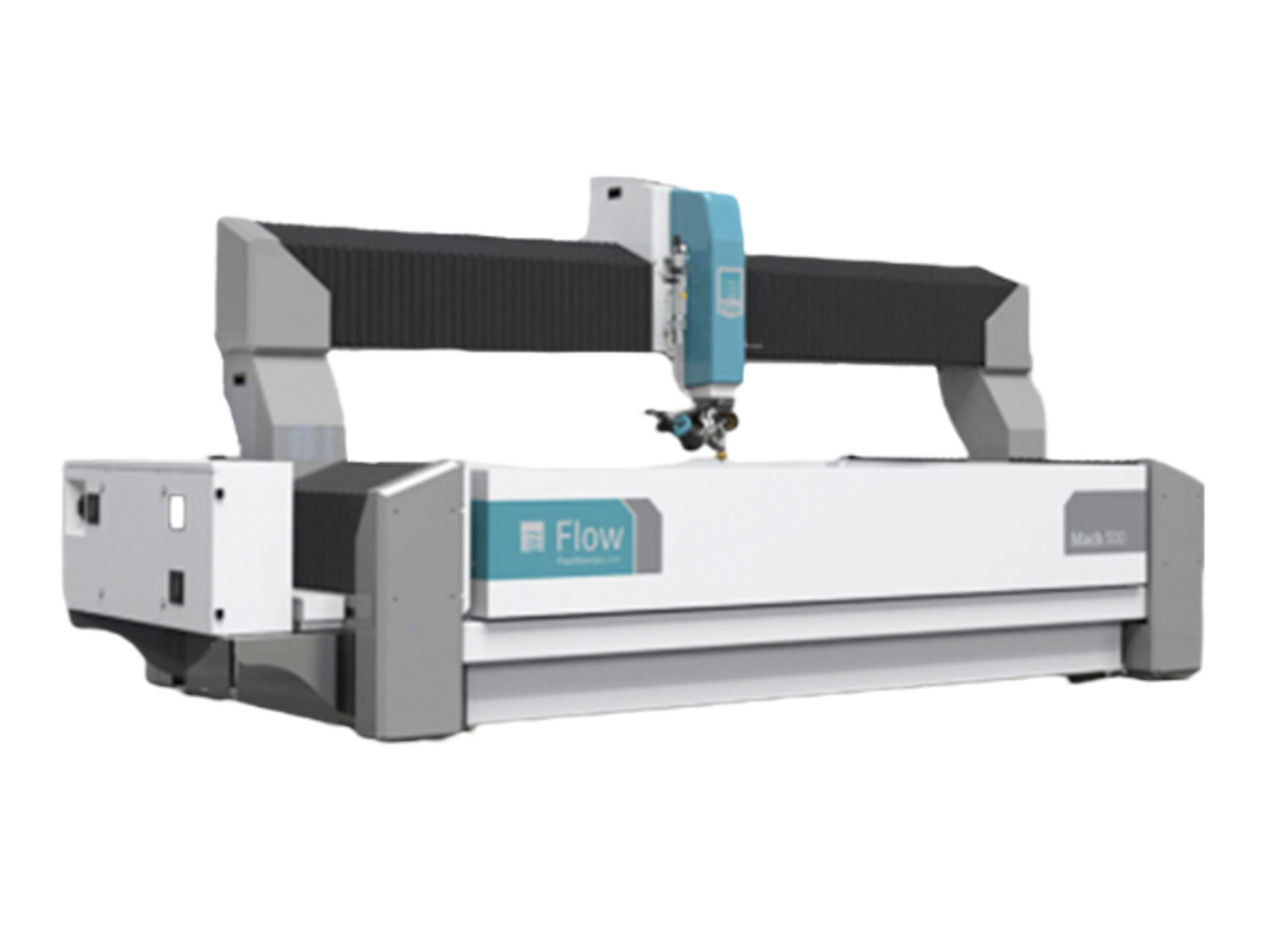

Abrasive Waterjet Cutting
Cold-cutting for metals, composites, and stacked materials — no heat-affected zone, no re-tooling between material changes.
- HyperJet pressure6,500 bar / 94,000 psi
- Intensifier pressure4,150 bar / 60,000 psi
- Max rapid traverse700 ipm
- Linear straightness±0.0015" / 3 ft
- Repeatability±0.001"

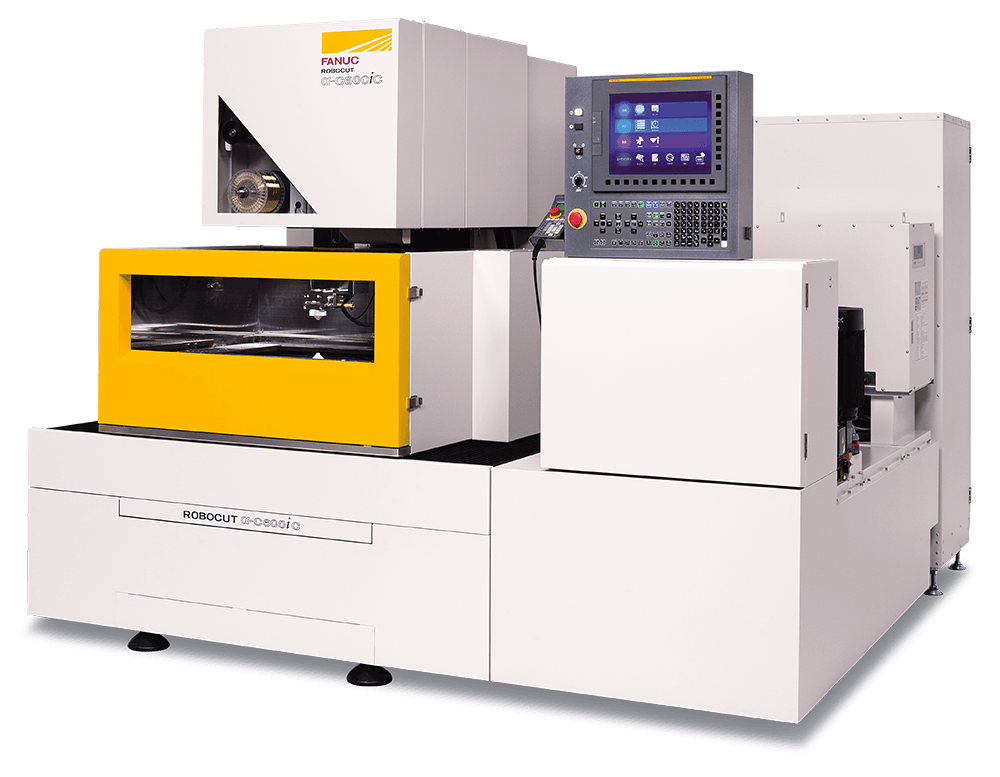

Wire Electrical Discharge Machining
Non-contact precision cutting for hardened materials and geometry conventional tooling can't reach — no burrs, no re-work.
- Positional tolerance±0.0001"
- Max taper angle±30°
- ControlFanuc CNC

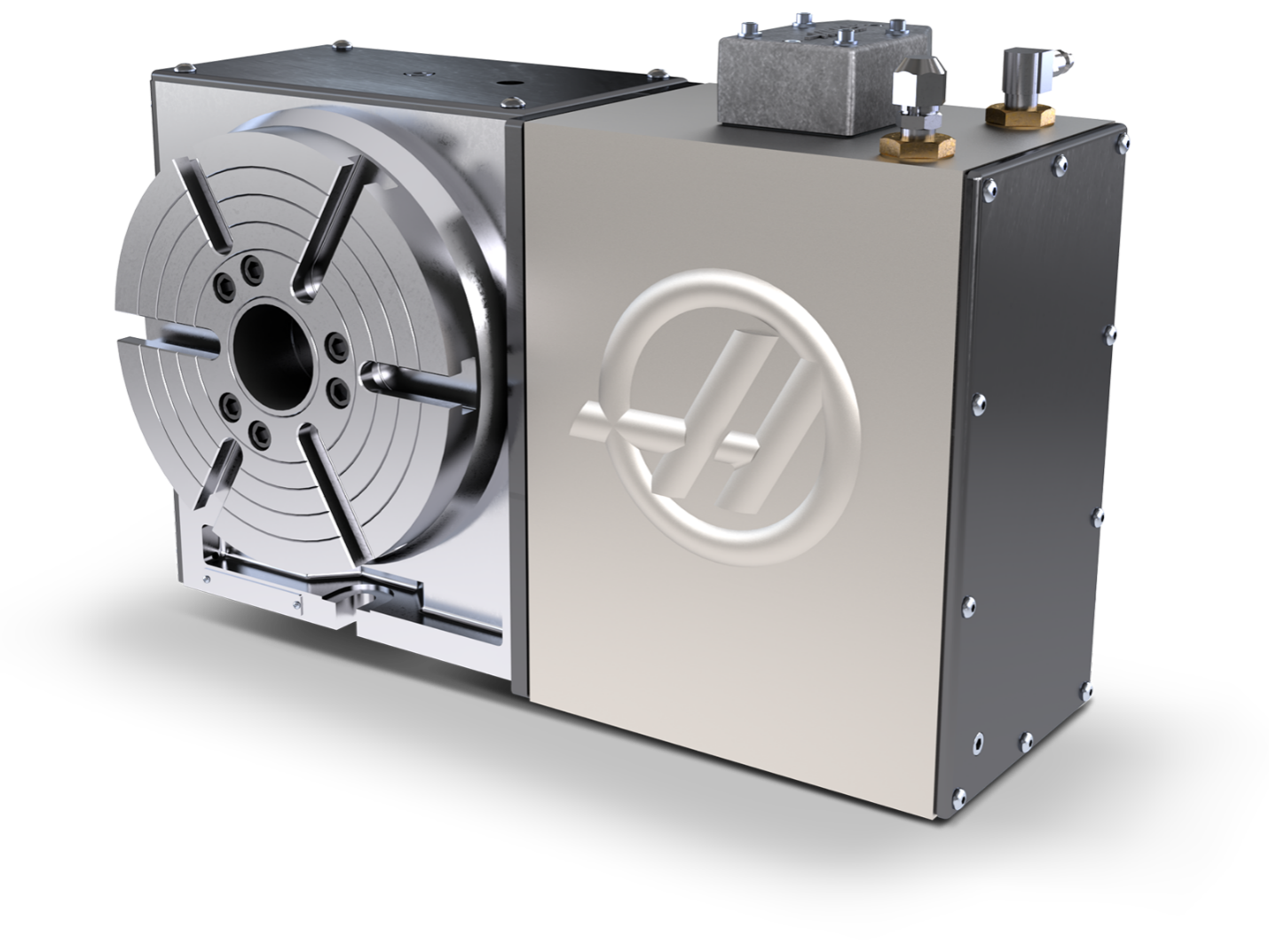

4th-Axis Rotary Indexing
Adds full 4th-axis rotary control to our 3-axis mills for continuous-path machining around a part's diameter in one setup.
- Table diameter310 mm / 12.2"
- Drive requirementHaas 4th-axis drive
- Stand-alone modeRotary control box

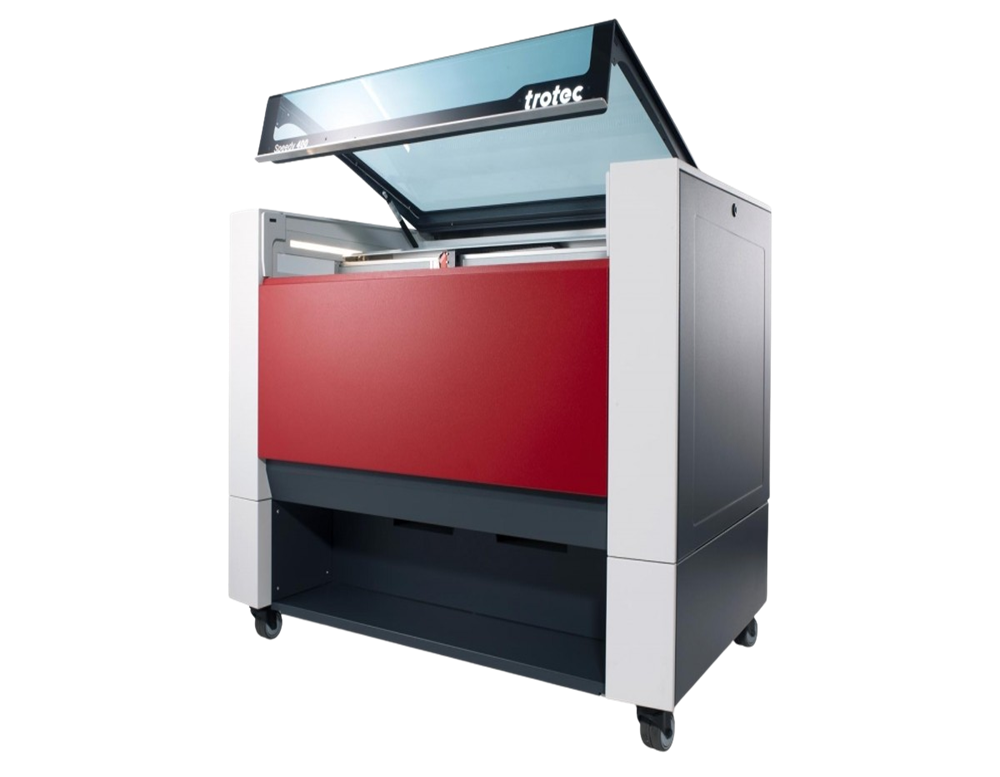

Laser Engraving & Marking
Permanent, precise marking on nearly any material — part numbers, logos, and traceability codes that won't wear off.
- ProcessFlex CO₂ / fiber laser
- Use caseEngraving · Marking · Cutting

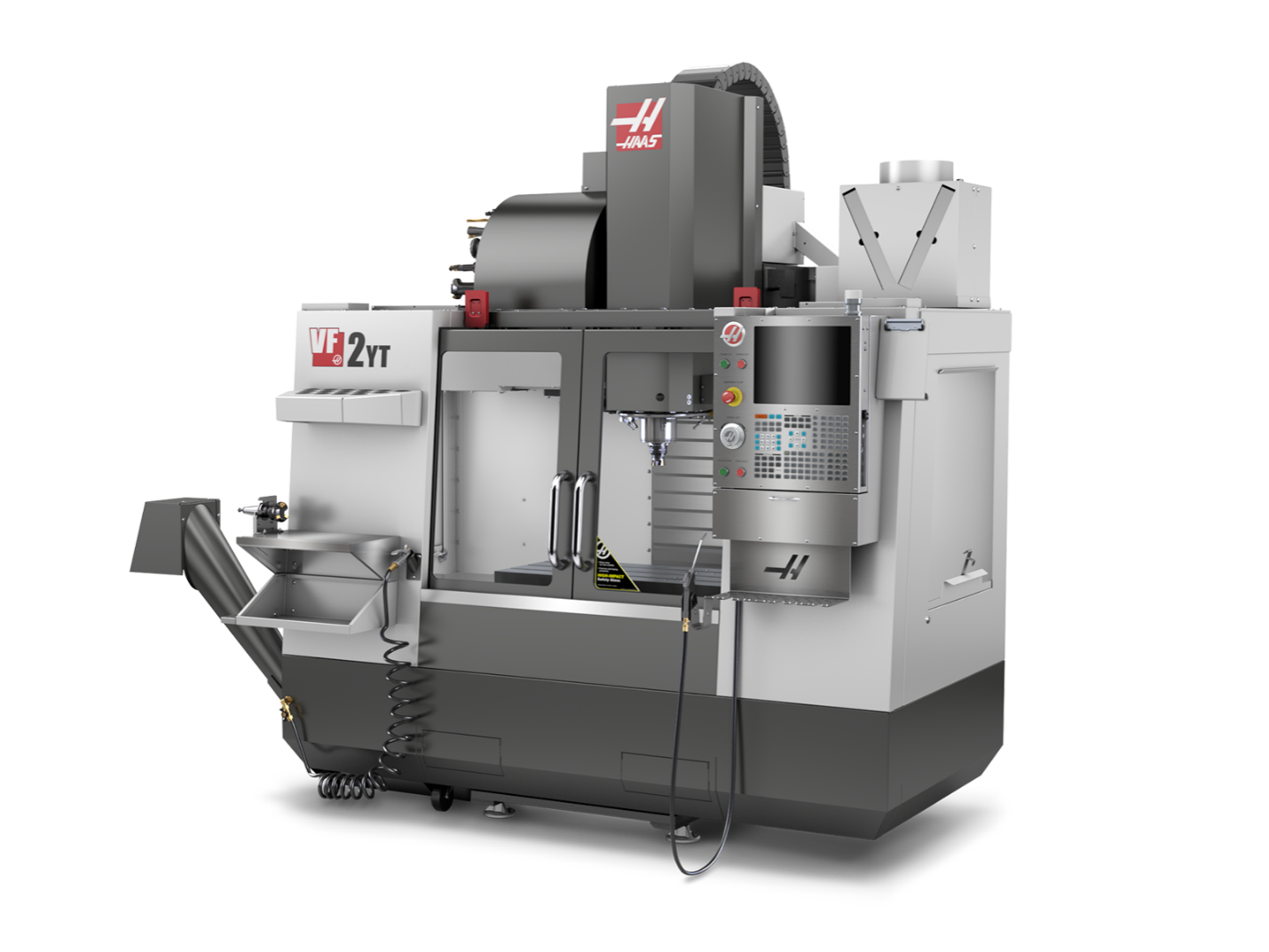

CNC Machining Center
Our workhorse mill for everyday production parts — fast changeovers and a compact footprint for small-to-mid envelope work.
- Travels (X/Y/Z)30" / 20" / 20"
- Table size18" × 36"
- Tool changer20 station
- Spindle speed8,100 rpm
- Spindle power30 hp / 22.4 kW
- TaperCT or BT 40

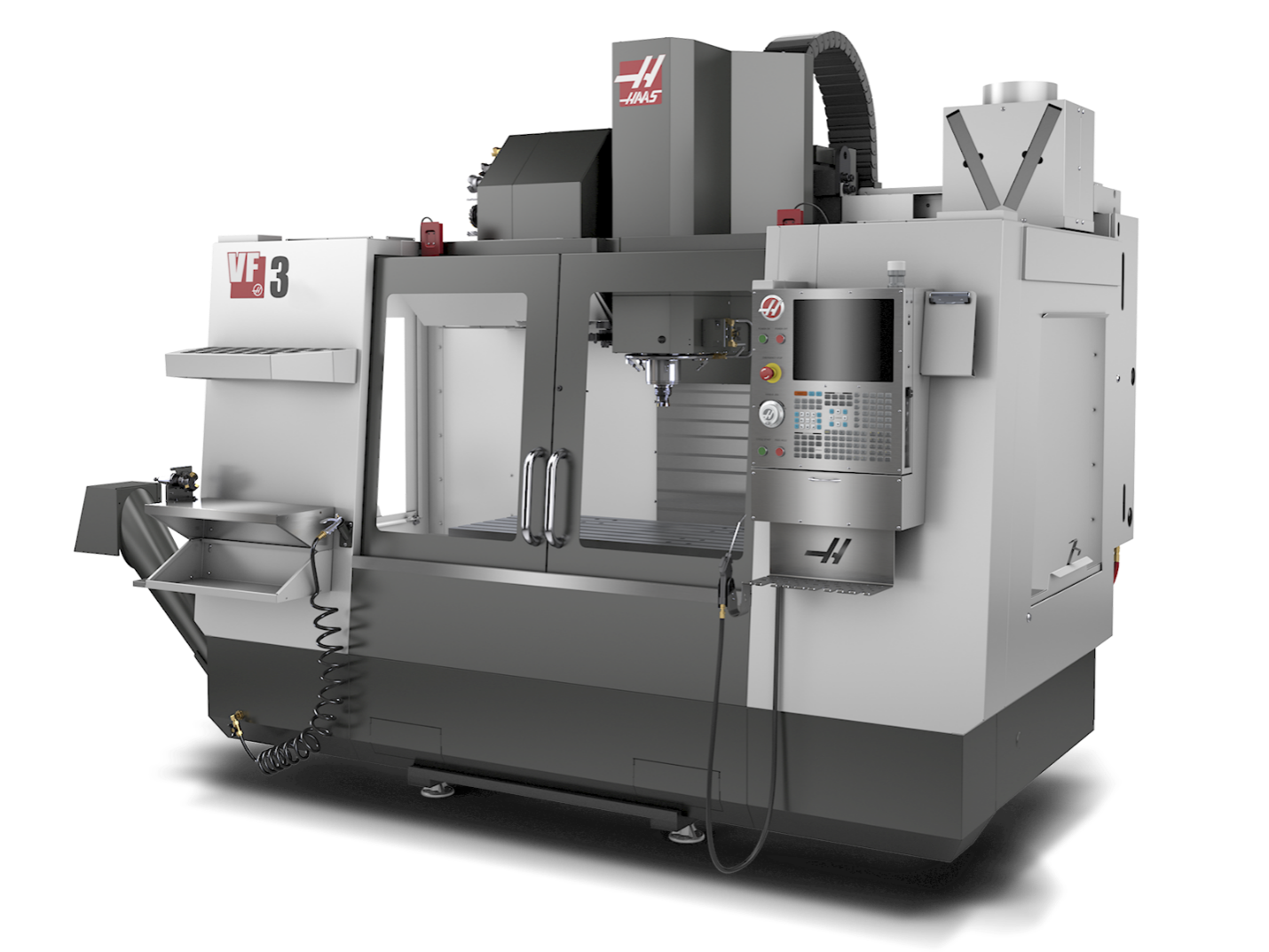

CNC Machining Center
Extended X-travel and deeper Z-stroke over the VF-2YT, for longer parts and taller fixturing without losing rigidity.
- Travels (X/Y/Z)40" / 20" / 25"
- Table size18" × 48"
- Tool changer20 station
- Spindle speed8,100 rpm
- Spindle power30 hp / 22.4 kW
- TaperCT or BT 40
CNC Machining Center
A step up in envelope and tool capacity for larger weldments, multi-fixture setups, and longer unattended runs.
- Travels (X/Y/Z)64" / 32" / 30"
- Table size28" × 64"
- Tool changer30 station
- Spindle speed7,500 rpm
- Spindle power30 hp / 22.4 kW
- TaperCT or BT 50

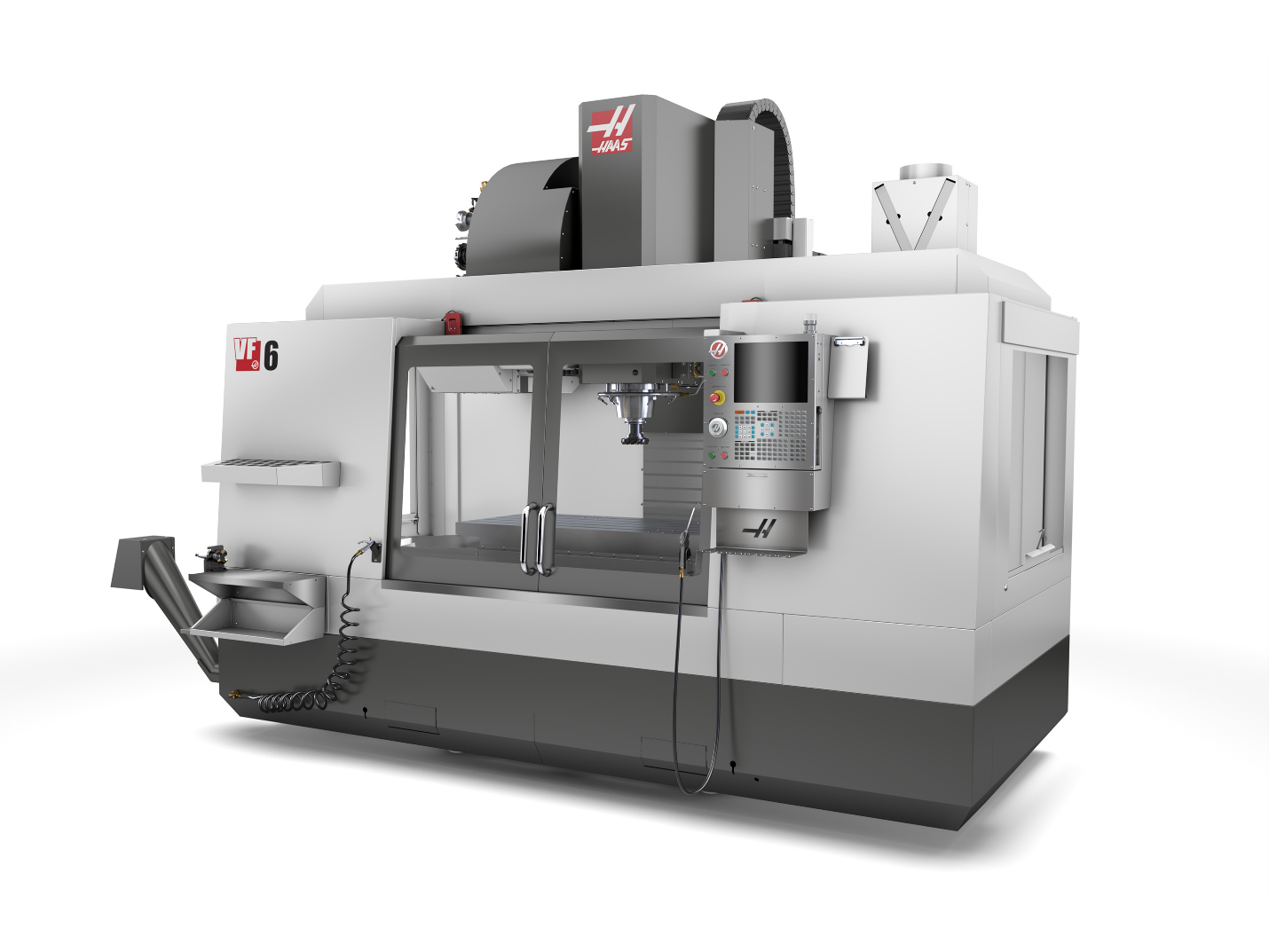

CNC Machining Center
Large-part capacity with a full-size 84" table, built for oversized fixtures and parts that outgrow our mid-size mills.
- Travels (X/Y/Z)84" / 32" / 30"
- Table size28" × 84"
- Tool changer30 station
- Spindle speed7,500 rpm
- Spindle power30 hp / 22.4 kW
- TaperCT or BT 50

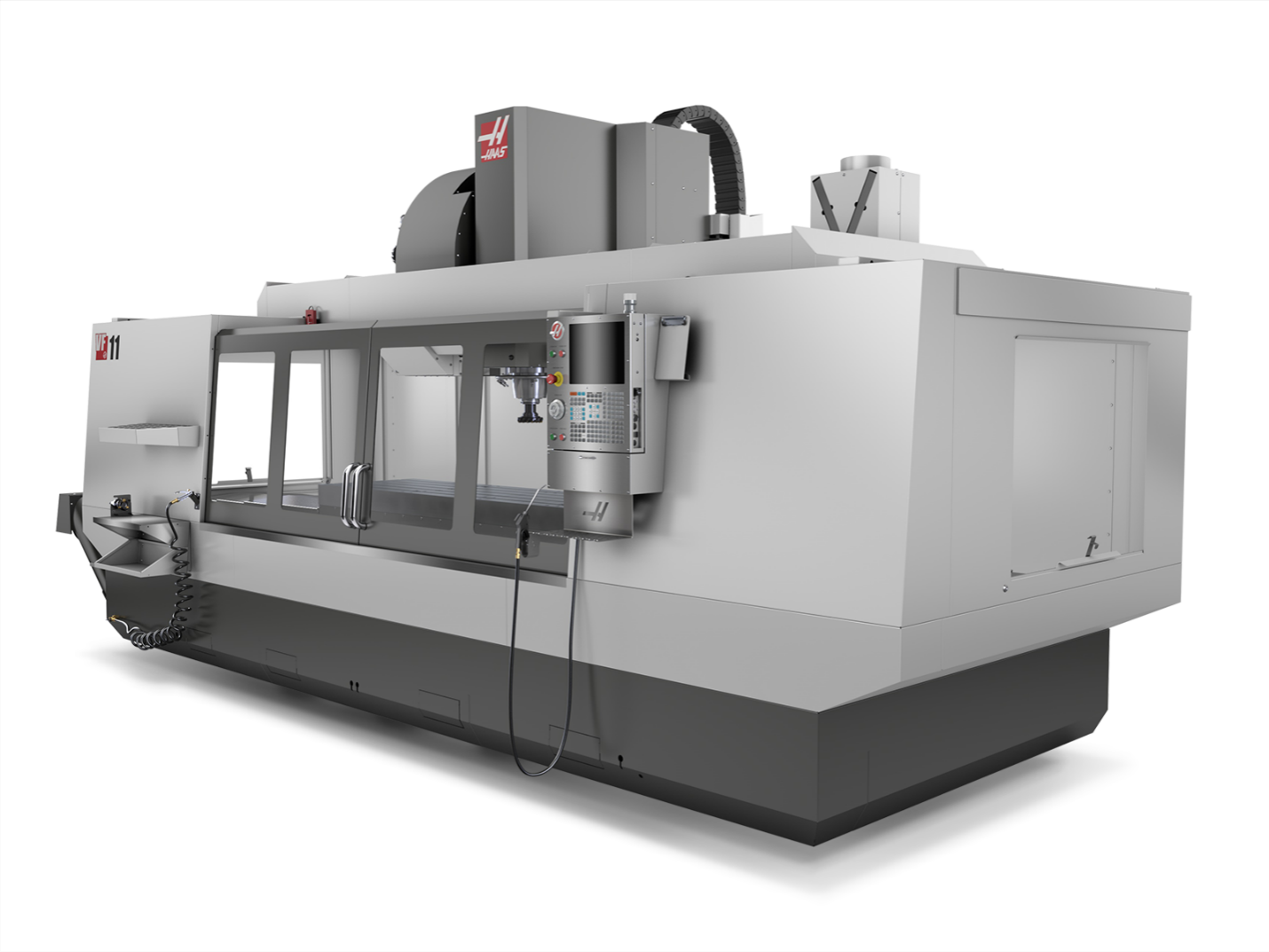

CNC Machining Center
Our largest 3-axis mill — a 120" table for full-length structural parts, tooling plates, and large-format production runs.
- Travels (X/Y/Z)120" / 40" / 30"
- Table size28" × 120"
- Tool changer30 station
- Spindle speed7,500 rpm
- Spindle power30 hp / 22.4 kW
- TaperCT or BT 50
Equipment and material partners
Not sure which process your part needs?
Send us the drawing — we'll tell you the fastest, most cost-effective way to make it.
